SERVO DRIVE

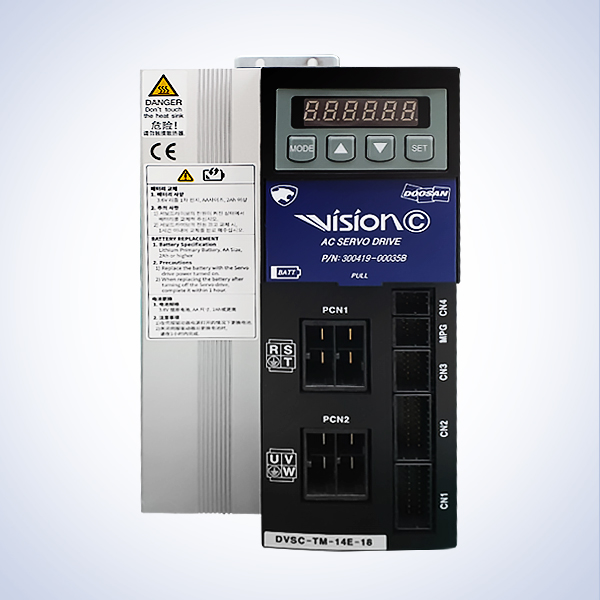

DVSC-TM-14

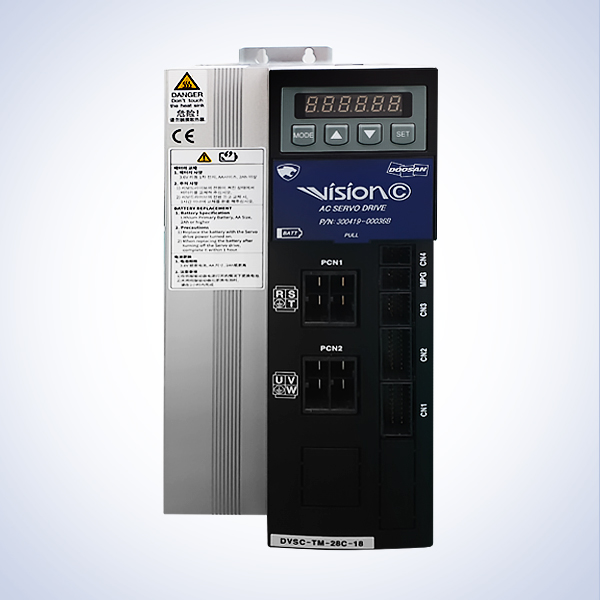

DVSC-TM-28

TM14,28 Specification Table

* Drag right

Items Specification
Applied motor capacity 0.4 / 0.5 / 0.8 / 1.0 / 1.5 / 1.7 / 2.0 / 2.3kW 2.8 / 3.0 / 4.0kW
Input rated current 12Arms 21Arms
Output rated current 14Arms 28Arms
Maximum current 40Apeak 80Apeak
Rated Power 2.5kW 5kW
Rotation speed RH*) : 2,000rpm / 3,000rpm (Rated / Maximum)
RG**) : 1,150rpm / 1,500rpm (Rated / Maximum)
Main input voltage 3PH, 200-240V ~, 50/60Hz
Output voltage 3PH, 170V ~, 0-333.3Hz
Control period 62.5㎲ec
Braking type Resistor discharge regenerative braking by built-in regenerative circuit
Control mode Position/Speed/Torque control
Control circuit 3 phase Voltage type PWM Inverter Drive (IPM)
Full Digital Vector Control (Position detection by Pulse Encoder)
Encoder Spec. Type Absolute Encoder
Resolution 17bit (131,072)
I/O Terminal block Input electric power(R, S, T, ), Output electric power(U, V, W, )
Protection Functions Over voltage, under voltage, over current, over speed, over load, encoder error and etc.
Other Functions Parameter setting, Diagnosis, Alarm Display and State Display by Display/Setting parts
Ambient temperature 0~50°C.
Ambient humidity Below 90%RH (don't be covered with dew)
Preservation temperature -20~85°C
Ambient Below 1000m
Vibrations Below 0.5G
Mounting Rack Mount

* RG model motor is 400W and 800W that rotate 3000 rpm at rated and 5000 rpm at maximum.

**RG model motor is 1.7KW, 2.3KW, and 2.8KW.

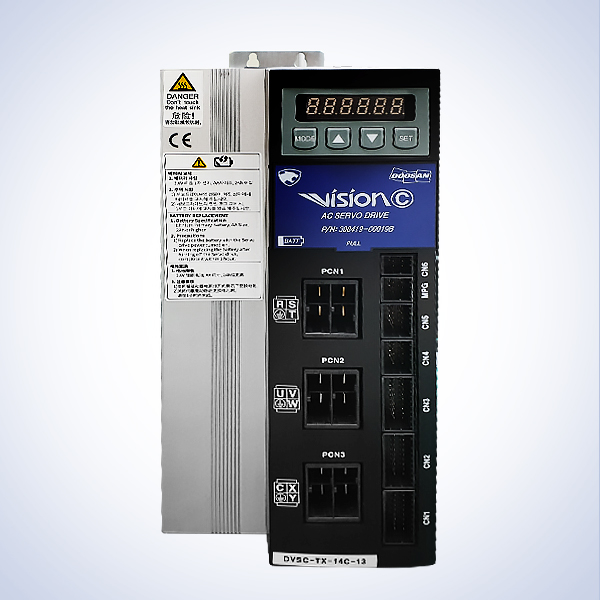

DVSC-TX-14

TX14 Specification Table

* Drag right

Items Specification
Applicable motor capacity 0.4 / 0.5 / 0.8 / 1.0 / 1.5 / 1.7 / 2.0 / 2.3kW
Input rated current 12Arms
Output rated current 14Arms
Maximum current 40Apeak
Rated Power 2.5kW
Rotation speed RH* ) :2000rpm / 3000rpm (Rated / Maximum)
RG** ) : 1150rpm / 1500rpm (Rated / Maximum)
Main input voltage 3PH, 200-240V~, 50/60Hz
Output voltage 3PH, 170V-, 0-333.3Hz
Control period 62.5㎲ec
Control method IPM full wave rectified, transistorized PWM control
Braking type Resistor discharge regenerative braking by built-in regenerative circuit
Control mode position, speed, torque control
Control Circuit 3 phase Voltage PWM Inverter Driving (IPM)
Full Digital Vector Control (Position detection by Pulse Encoder)
Encoder Spec. Type Absolute Encoder
Resolution 17bit (131,072)
I/O Terminal block input electric power(R, S, T, ), Output electric power(U, V, W, )
Protection Over voltage, under voltage, over current, over speed, over load, encoder error and etc.
Functions Setting Parameter, Diagnosis, Alarm Display, Status Display
Ambient temperature 10~50°C.
Ambient humidity Below 90%RH (don't be covered with dew)
Preservation temperature -20~85°C
Altitude Below 1000m
Vibrations Below 0.5G
Mounting Rack Mount
Other 2AC1S Control

* RG model motor is 400W and 800W that rotate 3000 rpm at rated and 5000 rpm at maximum.

**RG model motor is 1.7KW, 2.3KW, and 2.8KW.

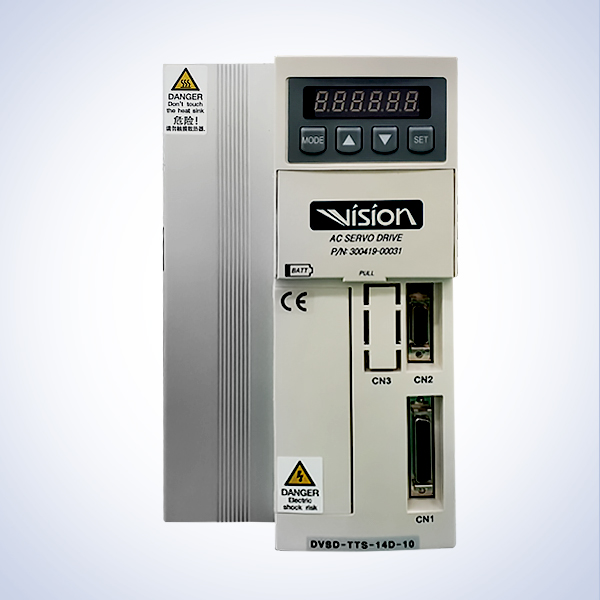

DVSD-TTS-14

TTS-14 Specification Table

* Drag right

Items Specification
Applicable motor capacity 0.8 / 1.5 / 2.0kW 3.0 / 4.0kW
rated current 14Arms 28Arms
Maximum current 40Apeak 80Apeak
Rotation speed 2000rpm / 3000rpm (Rated/Maximum)
Power 3相 200/220V +10% ~-15%, 50/60Hz ±5%
Control cycle 125㎲ec
Braking type Resistor discharge regenerative braking by built-in regenerative circuit
Control mode Position/Speed/Torque control
Control circuit 3 phase Voltage type PWM Inverter Drive (IPM)
Full Digital Vector Control (Position detection by Pulse Encoder)
Encoder Spec. Type Absolute Encoder
Resolution 17bit (131072)
I/O Terminal block Input electric power(R, S, T), Output electric power(U, V, W), Ground(E)
Protection Functions Over voltage, under voltage, over current, over speed, over load, encoder error and etc.
Other Functions Parameter setting, Diagnosis, Alarm Display and State Display by Display/Setting parts
Ambient temperature 0~50°C.
Ambient humidity Below 90%RH (don't be covered with dew)
Preservation temperature -20~85°C
Ambient Below 1000m
Vibrations Below 0.5G
Mounting Rack Mount

* )RG model motor is 400W and 800W that rotate 3000 rpm at rated and 5000 rpm at maximum.

**)RG model motor is 1.7KW, 2.3KW, and 2.8KW.
